Invasive Mechanical Ventilation

PHYSIOLOGY RELATIONSHIPMedically Verified (2026-08-24)

Transpulmonary Pressure (PL): Airway vs Pleural Pressure & Lung Distension Mechanics

Level: Anatomical Vector + Controlled Labels

Tap or click to enlargeEnlarge

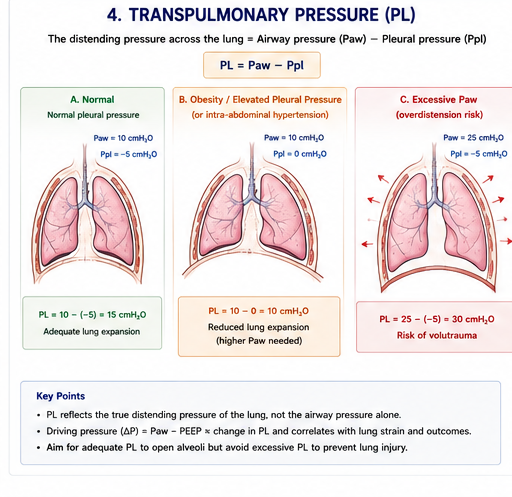

AI-generated educational illustration: Transpulmonary pressure mechanics (PL = Paw - Ppl) under normal chest wall, obesity, and high airway pressure conditions.

Pathophysiological Sequence (Layer 2)

Transpulmonary pressure represents the true mechanical distending stress acting across the alveolar wall→Elevated pleural pressure (obesity, tight chest wall, ascites) reduces net transpulmonary distending pressure→In stiff chest walls, high airway pressures may reflect chest wall load rather than lung overdistension→Esophageal balloon manometry estimates pleural pressure to optimize end-expiratory and end-inspiratory PL→Targeting positive end-expiratory PL prevents atelectrauma while limiting end-inspiratory PL avoids barotrauma

View Evidence & Sources (2)

PHYSIOLOGY RELATIONSHIPMedically Verified (2026-08-24)

Cardiovascular Effects of Positive-Pressure Ventilation: Heart-Lung Interactions

Level: Anatomical Vector + Controlled Labels

Tap or click to enlargeEnlarge

Cardiovascular effects of positive-pressure ventilation — venous return and lung-volume-dependent RV afterload.

Pathophysiological Sequence (Layer 2)

Spontaneous inspiration enhances venous return via negative pleural pressure; PPV reverses this gradient→Positive alveolar pressure transmits to the pleural space, compressing the vena cava and raising RAP→Excessive RV afterload can cause right ventricular strain and leftward interventricular septal shift→Hypovolemic patients are exquisitely sensitive to PPV-induced circulatory collapse→Judicious PEEP selection and volume optimization preserve forward hemodynamic stability

View Evidence & Sources (2)

Invasive mechanical ventilation is a life-sustaining supportive intervention designed to maintain alveolar ventilation, optimize arterial oxygenation, reduce the metabolic work of breathing, and allow therapeutic stabilization in acute respiratory failure, shock, or severe neurologic impairment.

Because positive-pressure ventilation reverses the normal negative-pressure physiology of spontaneous breathing, it introduces serious iatrogenic hazards: ventilator-induced lung injury (VILI: barotrauma, volutrauma, atelectrauma, biotrauma), severe reduction in right ventricular venous return (preload collapse), and patient-ventilator dyssynchrony. Critical care management requires meticulous parameter selection, continuous monitoring of respiratory mechanics (Cstat, Raw, Driving Pressure, Mechanical Power), and daily protocolized screening for liberation.

• D — Dislodged / Malpositioned Endotracheal Tube: Right mainstem intubation (high peak pressure, asymmetric breath sounds) or accidental extubation.
• O — Obstruction: Mucus plugging, tube kinking, biting on endotracheal tube, or herniated cuff.
• P — Pneumothorax: Sudden rise in peak and plateau pressures, unilateral absent breath sounds, subcutaneous emphysema, hemodynamic collapse.
• E — Equipment Failure: Ventilator malfunction, oxygen supply failure, circuit disconnect, or exhalation valve blockage.

A ventilator breath is defined by four phase variables: (1) Trigger (what starts inspiration: time, pressure, or flow); (2) Target/Limit (what parameter is capped during inspiration: volume, flow, or pressure); (3) Cycle (what ends inspiration: volume, time, or flow); and (4) Baseline (what end-expiratory pressure is maintained: PEEP).

The Equation of Motion for the respiratory system states: Paw = Pelastic + Presistive + PEEP = (Vt / Cstat) + (Raw × Flow) + PEEP. During an end-inspiratory pause (flow = 0), resistive pressure drops to zero, and airway pressure equilibrates to the Static Plateau Pressure (Pplat), which reflects alveolar distending pressure.

Patient-ventilator dyssynchrony occurs in > 25% of mechanically ventilated patients and is independently associated with prolonged mechanical ventilation, increased sedation requirements, ICU delirium, and higher mortality:

• Barotrauma: High transalveolar pressure causing macroscopic alveolar rupture, leading to pulmonary interstitial emphysema, pneumothorax, pneumomediastinum, and subcutaneous emphysema.
• Volutrauma: Regional alveolar overdistension from excessive end-inspiratory lung volume (strain), leading to alveolar-capillary membrane disruption, increased vascular permeability, and non-cardiogenic pulmonary edema.
• Atelectrauma: Shear stress injury caused by repetitive cyclic opening and closing of unstable, surfactant-depleted alveoli during tidal breathing. Prevented by adequate positive end-expiratory pressure (PEEP).
• Biotrauma: Mechanical deformation of epithelial and endothelial cells triggering intracellular signal transduction cascades that release pro-inflammatory cytokines (IL-6, IL-8, TNF-alpha) into the systemic circulation, driving multiorgan dysfunction syndrome (MODS).
• Ergotrauma: Lung injury caused by excessive cumulative kinetic energy and mechanical power delivered per unit time into heterogeneous lung tissue.

Liberation from mechanical ventilation should be evaluated daily via protocolized screening to avoid prolonged intubation:

• Calculating tidal volume based on actual body weight instead of Predicted Body Weight (PBW): Lung size is determined by height and biological sex, not adipose tissue; ventilating an obese patient based on actual weight delivers severely injurious tidal volumes (> 12–15 mL/kg PBW).
• Treating patient-ventilator dyssynchrony reflexively with deeper sedation or paralytics without analyzing the pressure/flow waveforms: Most dyssynchrony is easily solved by increasing peak inspiratory flow, matching auto-PEEP, or adjusting trigger sensitivity.
• Confusing Peak Pressure with Plateau Pressure: An elevated Ppeak with a normal Pplat (< 28 cmH2O) indicates an airway resistance problem (ETT biting, bronchospasm, secretions, kinked tube), NOT alveolar stiffness.
• Failing to recognize auto-PEEP as the cause of difficult weaning or post-intubation shock: Always perform an end-expiratory hold maneuver to measure intrinsic PEEP.
• Failing to plan post-extubation support in a genuinely high-risk patient: consider prophylactic NIV and/or HFNC according to the patient’s risk phenotype, gas exchange and the evidence for the relevant subgroup.

SBT Technique — Pressure Support (PSV) versus T-Piece: While the 2017 ATS/CHEST guidelines recommend PSV (5–8 cmH2O) to overcome the resistive work of the endotracheal tube, critics argue that PSV may underestimate post-extubation work of breathing, leading to premature extubation in marginal patients. T-piece trials provide a truer reflection of unassisted breathing mechanics.

Driving Pressure-Guided vs PEEP/FiO2 Table-Guided Ventilation: While traditional ARDS management utilizes standard PEEP/FiO2 titration tables, randomized trials are evaluating whether individualizing PEEP to achieve the lowest Driving Pressure (ΔP = Pplat - PEEP) or maximum static compliance improves clinical survival compared to empiric protocolized tables.

1. Confirm airway position and patency, select a mode that reliably achieves the immediate gas-exchange goal, and calculate tidal volume from predicted rather than actual body weight when volume targeting is used.
2. Set oxygen, PEEP, respiratory rate, inspiratory flow/time and alarms to the phenotype: ARDS, obstructive disease, severe metabolic acidosis, RV failure and brain injury require different priorities.
3. Within minutes, inspect exhaled tidal volume, minute ventilation, pressure/flow waveforms, SpO2/ABG when needed, blood pressure and signs of dynamic hyperinflation or excessive transpulmonary stress.
4. Treat the patient rather than the displayed mode name: the same nominal mode can deliver very different pressure, flow, effort and mechanical power depending on patient demand and ventilator implementation.

• Airway/circuit: tube depth, cuff, humidification, secretions, obstruction, water, kinks and ventilator/circuit integrity.
• Ventilator: verify what is actually delivered—Vt, minute ventilation, FiO2, PEEP, inspiratory time/flow, trigger and cycling—not merely what was ordered.
• Mechanics: compare peak and plateau pressure when a valid inspiratory hold is feasible, estimate compliance and resistance, and measure intrinsic PEEP with an expiratory hold only when patient effort does not invalidate the maneuver.
• Interaction: identify ineffective efforts, double triggering, flow starvation, premature/delayed cycling and reverse triggering before reflexively deepening sedation.
• Whole patient: integrate gas exchange, work of breathing, diaphragm/respiratory drive, RV/LV hemodynamics and comfort; driving pressure and mechanical power are risk markers, not universal stand-alone targets for every phenotype.

1. After SBT success, separately assess airway patency risk, secretion burden, cough/airway-protection capability, mental status trajectory and the probability of rapid recurrent pulmonary edema or hypercapnia.
2. Plan post-extubation respiratory support before removing the tube. Prophylactic NIV has the strongest evidence in selected high-risk patients, while HFNC is useful across several hypoxemic and post-extubation phenotypes; choose by physiology and local evidence rather than age alone.
3. A cuff-leak test is selective for patients at increased risk of laryngeal edema, not a universal extubation screen.
4. If clinically important post-extubation respiratory failure develops, use NIV/HFNC only when the phenotype and trajectory are appropriate; do not allow noninvasive support to delay reintubation in a deteriorating patient.
